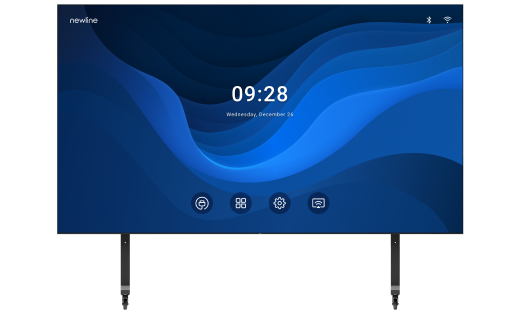

All In One Direct View LED Display
The newly upgraded DV One+ offers enhanced performance and additional features to meet diverse needs. The DV One+ comes in four sizes, 135”, 163”, 189” and 216”, providing more flexibility for different spaces, from compact areas to larger venues. The DV One+ introduces several new features that elevate performance and functionality. RS-232 and IP control, along with Wake-on-LAN and Wake-on-WiFi, enables seamless remote management and control through Newline Display Management (NDM). Maintenance is simplified with easy access to components, while the upgraded Android 13 operating system and new chipset enhance performance and responsiveness. Additionally, the DV One+ features a new intuitive calibration tool, making adjustments quicker and easier than ever before. The design has been streamlined with a sleek design and hidden-away ports for a cleaner, more polished presentation, and allows for cleaner integration with existing audio systems or separate speaker setups. This refined design, combined with its reliable performance, makes the DV One+ an ideal choice for spaces like lecture halls, cafeterias, media centers, and gymnasiums, where tailored display solutions are key.

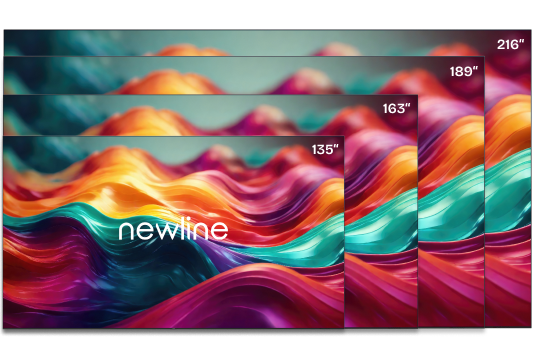

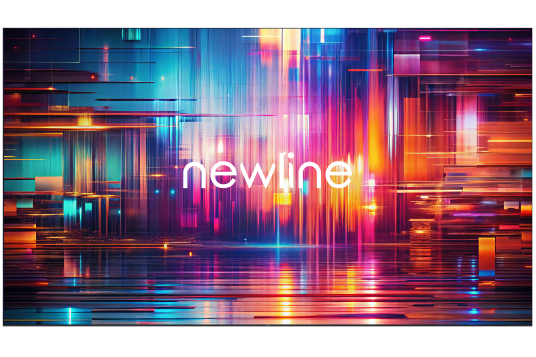

The DV One+ is available in four sizes—135”, 163”, 189”, and 216”—offering flexibility to suit a variety of spaces and needs. Each display features a sleek design with an ultra-thin bezel, maximizing the screen area and delivering a modern, seamless appearance. This combination of size options and a stylish, minimalistic design makes the DV One+ ideal for large-scale presentations, video walls, and immersive visual experiences in settings such as corporate boardrooms, auditoriums, and retail environments.

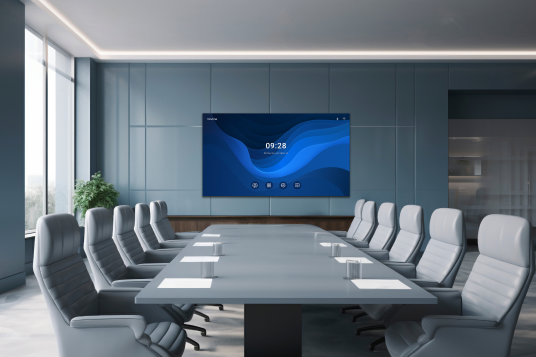

The DV One+ is powered by the latest Android 13 operating system and a new, more advanced chipset, providing enhanced performance and responsiveness. This upgrade ensures smoother operation, faster processing, and improved compatibility with modern applications and software. Whether for interactive presentations, media playback, or seamless multitasking, the DV One+ delivers a superior user experience.
The DV One+ comes equipped with RS-232 and IP Control support, offering greater flexibility and control for system integrators and users. These features allow seamless integration with third-party control systems, enabling remote monitoring, management, and automation of the display. Whether managing multiple devices from a centralized location or automating specific functions, RS-232 and IP Control provide a reliable and efficient way to enhance overall system performance.

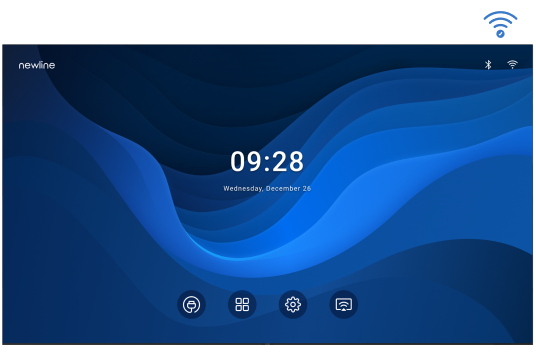

The DV One+ features Wake-on-LAN and Wake-on-WiFi capabilities, allowing the display to be powered on remotely through a network connection. This functionality enhances convenience and efficiency, enabling users to manage and control the display from anywhere without needing physical access. Whether it’s in a corporate setting, school, or public venue, this feature ensures that the DV One+ can be easily activated for meetings, presentations, or other events, saving time and energy while streamlining operations.
| Model | DV-13524-PLUS | DV-16324-PLUS | DV-18924-PLUS | DV-21624-PLUS |
|---|---|---|---|---|
| Size | 135" | 163" | 189” | 216” |
| Lights Welding Type | SMD+GOB | SMD+GOB | SMD+GOB | SMD+GOB |
| Resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 |
| Contrast Ratio | 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Typ. Max. Brightness | Up to 550nits | Up to 550nits | Up to 550nits | Up to 550nits |
| Color Depth | 8 bit | 8 bit | 8 bit | 8 bit |
| Grayscale Rating | 14 bit | 14 bit | 14 bit | 14 bit |
| Pixel Pitch | 1.56mm | 1.875mm | 2.08mm | 2.34mm |
| Chipset | A311D2 | A311D2 | A311D2 | A311D2 |
| RAM | 4GB | 4GB | 4GB | 4GB |
| ROM | 32GB | 32GB | 32GB | 32GB |
| WiFi | Wi-Fi 5 & 6 (2.4G + 5G) | Wi-Fi 5 & 6 (2.4G + 5G) | Wi-Fi 5 & 6 (2.4G + 5G) | Wi-Fi 5 & 6 (2.4G + 5G) |
| Lifespan | 100000 hours | 100000 hours | 100000 hours | 100000 hours |

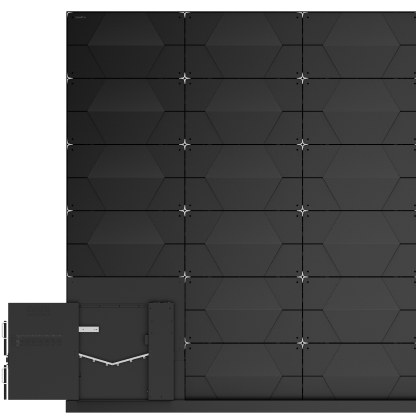

The DV One+ features strategically hidden-away port locations, offering a clean and streamlined presentation. By concealing the ports, the display maintains a sleek, uncluttered appearance, making it perfect for professional and public spaces where aesthetics matter. This design not only enhances the visual appeal but also minimizes cable management issues, ensuring a tidy setup in environments like boardrooms, lecture halls, and retail displays.
The DV One+ offers remote management support through Newline Display Management (NDM), providing users with complete control over their display from any location. With NDM, administrators can monitor display status, troubleshoot issues, and perform updates or adjustments across multiple displays in real-time, all from a centralized platform. This feature significantly reduces the need for on-site maintenance, improves operational efficiency, and ensures that the DV One+ delivers optimal performance in environments like schools, offices, and conference centers.
The DV One+ is designed with easy access to internal components, simplifying maintenance and reducing downtime. This feature allows technicians to quickly reach and service key parts of the display without the need for complex disassembly, making repairs and adjustments more efficient. Whether replacing components or performing routine maintenance, this thoughtful design ensures that the DV One+ remains operational with minimal disruption.
DV One+ Quick Start Guide 135"
DV One+ Quick Start Guide 163"
DV One+ Quick Start Guide 189"
What's in the Box? DV One+ 135"
What's in the Box? DV One+ 163"
What's in the Box? DV One+ 189"
What's in the Box? DV One+ 216"
DV One+ 135" Fixed Height Mobile Cart Installation Manual
DV One+ 163" Fixed Height Mobile Cart Installation Manual
DV One+ 135" Dimensional Drawing
DV One+ 135" Dimensional Drawing with Mobile Stand
DV One+ 163" Dimensional Drawing
DV One+ 163" Dimensional Drawing with Bracket
DV One+ 163" Dimensional Drawing with Mobile Stand
DV One+ 189" Dimensional Drawing
DV One+ 216" Dimensional Drawing
DV One+ Motorized Mobile Stand Dimensional Drawings
