Ultra Power. Ultra Collaboration. Ultra Impact.
The Q-Elite’s built-in NFC card reader makes access fast, secure, and personalized. With a simple tap, users can log in to their profiles, instantly pulling up preferred settings, apps, and files. This streamlined feature saves time in shared environments, enhances data security, and ensures a seamless transition between users—perfect for classrooms, meeting spaces, or collaborative work environments.
The Q-Elite features dual 25W speakers and a 25W subwoofer, delivering rich, room-filling audio that enhances presentations, lessons, and multimedia content. This powerful sound system ensures every voice, tone, and detail is heard clearly, creating an immersive experience for classrooms, meeting rooms, or collaborative workspaces. With crystal-clear audio and deep, resonant bass, the Q-Elite makes every session more engaging and impactful.
Powered by next-gen Android 16, the Q-Elite delivers a faster, smarter, and more secure interactive experience. The upgraded operating system offers enhanced performance, robust security features, and greater customization through user profiles, making it easy to tailor the panel to individual needs. With access to the latest apps, tools, and updates, Android 16 ensures the Q-Elite is future-ready and built to support seamless collaboration in any environment.
The Q-Elite’s built-in 8-mic array ensures every voice is heard with clarity, whether in a large lecture hall, boardroom, or hybrid meeting. Designed to capture sound from all directions, the advanced microphone system reduces background noise and enhances voice pickup, creating a seamless experience for remote participants and in-room collaboration. This makes discussions, presentations, and video conferences more natural and engaging for everyone involved.
With Google EDLA integration, the Q-Elite combines powerful performance with the trusted security and versatility of Google. Educators and professionals can access native Google apps like Classroom, Drive, and Meet directly from the panel, while the Google Play Store unlocks thousands of productivity, collaboration, and learning tools. EDLA also ensures advanced security features, device management, and seamless updates—providing a safe, reliable, and future-proof solution for any organization.
| Model No | TT-5526QELT | TT-6526QELT | TT-7526QELT | TT-8626QELT | TT-9826QELT |
|---|---|---|---|---|---|
| Resolution | 3840 x 2160 (4K) | 3840 x 2160 (4K) | 3840 x 2160 (4K) | 3840 x 2160 (4K) | 3840 x 2160 (4K) |
| Refresh Rate | 120 Hz | 120 Hz | 120 Hz | 120 Hz | 120 Hz |
| Color Depth | 10bit(8bit+FRC) | 10bit(8bit+FRC) | 10bit(8bit+FRC) | 10bit(8bit+FRC) | 10bit(8bit+FRC) |
| Brightness | >=550 cd/㎡ | >=550 cd/㎡ | >=550 cd/㎡ | >=550 cd/㎡ | >=550 cd/㎡ |
| Response Time(Typ.) | 4ms | 4ms | 4ms | 4ms | 4ms |
| Display Life Time | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours |
| Chipset | RK3588 | RK3588 | RK3588 | RK3588 | RK3588 |
| CPU | ARM A76*4 + A55*4 - Max 2.4GHz | ARM A76*4 + A55*4 - Max 2.4GHz | ARM A76*4 + A55*4 - Max 2.4GHz | ARM A76*4 + A55*4 - Max 2.4GHz | ARM A76*4 + A55*4 - Max 2.4GHz |
| RAM | 16 GB | 16 GB | 16 GB | 16 GB | 16 GB |
| ROM | 256 GB | 256 GB | 256 GB | 256 GB | 256 GB |
| Android Version | Android 16 | Android 16 | Android 16 | Android 16 | Android 16 |
| OS Version | EDLA | EDLA | EDLA | EDLA | EDLA |
| Top Camera Port | Yes, USB 3.0，5V/2A | Yes, USB 3.0，5V/2A | Yes, USB 3.0，5V/2A | Yes, USB 3.0，5V/2A | Yes, USB 3.0，5V/2A |
| OPS Slot | Yes | Yes | Yes | Yes | Yes |
| Mic Position | 8-Mic Array - upper front | 8-Mic Array - upper front | 8-Mic Array - upper front | 8-Mic Array - upper front | 8-Mic Array - upper front |
| Camera Resolution | 3840 × 2160/30 fps (4K) | 3840 × 2160/30 fps (4K) | 3840 × 2160/30 fps (4K) | 3840 × 2160/30 fps (4K) | 3840 × 2160/30 fps (4K) |
| Field of View | 120° FOV Lenses | 120° FOV Lenses | 120° FOV Lenses | 120° FOV Lenses | 120° FOV Lenses |
| AI Auto Framing ( Face Tracking) | Yes | Yes | Yes | Yes | Yes |
| ePTZ | Yes | Yes | Yes | Yes | Yes |
| NFC | Yes | Yes | Yes | Yes | Yes |
| Speaker Power (Max.) | 25Wx2 | 25Wx2 | 25Wx2 | 25Wx2 | 25Wx2 |
| Subwoofer Power (Max.) | 25W | 25W | 25W | 25W | 25W |
| Glass Surface Treatment | Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass | Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass | Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass | Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass | Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass |
| Glass Hardness | 9H(Pencil) | 9H(Pencil) | 9H(Pencil) | 9H(Pencil) | 9H(Pencil) |
| Touch Points | Android 50 & Windows 50 | Android 50 & Windows 50 | Android 50 & Windows 50 | Android 50 & Windows 50 | Android 50 & Windows 50 |

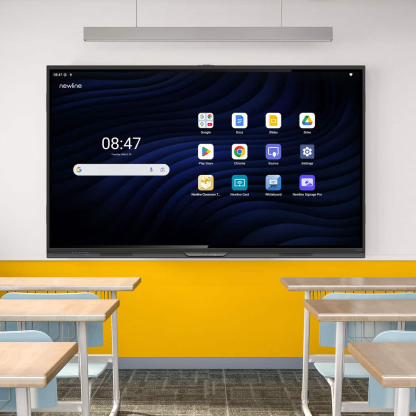

Equipped with 16GB of RAM and 256GB of storage, the Q-Elite delivers the speed and capacity needed for today’s most demanding applications. The upgraded memory ensures smooth multitasking and faster performance, while the expanded storage provides ample space for apps, files, and media without relying on external devices. Together, these enhancements make the Q-Elite a powerful, reliable solution for seamless collaboration and productivity.
The Q-Elite supports up to 50 points of touch, enabling multiple users to interact with the display simultaneously. This advanced touch capability makes collaborative work, brainstorming sessions, and interactive lessons more dynamic and engaging. Whether in classrooms, meeting rooms, or training spaces, the Q-Elite ensures smooth, responsive, and precise touch performance for every participant.

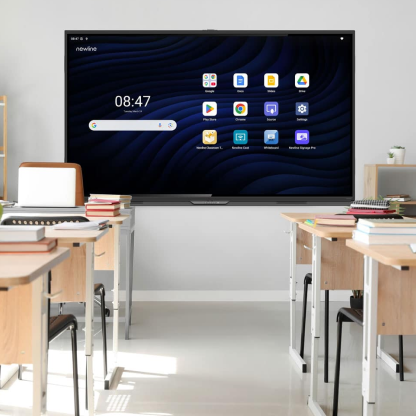

The Q-Elite features dual 25W speakers and a 25W subwoofer, delivering rich, room-filling audio that enhances presentations, lessons, and multimedia content. This powerful sound system ensures every voice, tone, and detail is heard clearly, creating an immersive experience for classrooms, meeting rooms, or collaborative workspaces. With crystal-clear audio and deep, resonant bass, the Q-Elite makes every session more engaging and impactful.
