Active LED Solution
The DVG Series represents a breakthrough in display technology, combining unparalleled durability with stunning visual performance in an affordable package.
The DVG Series represents a breakthrough in display technology, combining unparalleled durability with stunning visual performance in an affordable package.

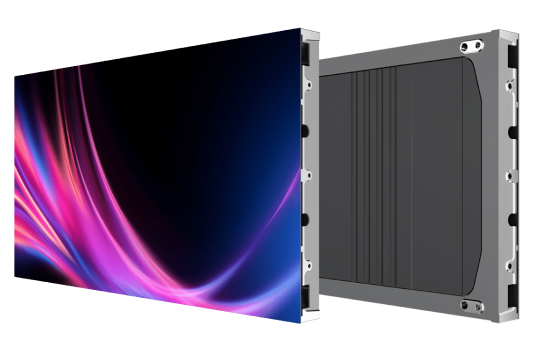

The DVG Series represents a breakthrough in display technology, combining unparalleled durability with stunning visual performance in an affordable package. Utilizing a cutting-edge glue on board (GOB) construction, this series offers exceptional reliability, making it ideal for a wide range of applications including indoor advertising, conference rooms, controls rooms and more.
The Glue on board (GOB) technology of the DVG involves applying an additional layer of resin or glue directly onto LED chips on a circuit board, serving protective, optical enhancement, and thermal management purposes. This layer shields LED chips from environmental damage, improves optical performance by reducing light reflection, and enhances heat dissipation to prevent overheating and prolong LED display lifespan.
| Model NO | DVG - 1.2P | DVG - 1.5P | DVG - 1.8P | DVG - 2.5P |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.25 pixel pitch | 1.56 pixel pitch | 1.87 pixel pitch | 2.5 pixel pitch |
| Pixel Configuration | GOB | GOB | GOB | GOB |
| Module Size (mm) | 300*168.75mm | 300*168.75mm | 300*168.75mm | 300*168.75mm |
| Cabinet Size (mm) (W×H×D) | 600*337.5*40mm | 600*337.5*40mm | 600*337.5*40mm | 600*337.5*40mm |
| Cabinet Resolution (W×H) | 480*270 | 384*216 | 320*180 | 240*135 |
| Cabinet Material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Brightness (nits) | 0-600(Adjustable) | 0-600(Adjustable) | 0-600(Adjustable) | 0-600(Adjustable) |
| Max Power Consumption | ≤500 | ≤400 | ≤400 | ≤400 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Life Span | 100000hrs | 100000hrs | 100000hrs | 100000hrs |
| IP Rating | Front IP41/Rear IP20 | Front IP41/Rear IP20 | Front IP41/Rear IP20 | Front IP41/Rear IP20 |

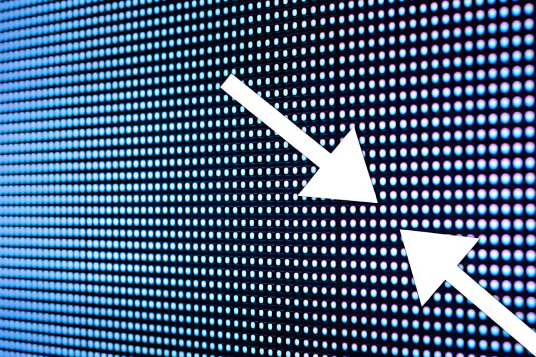

The smaller pixel pitch, the distance between adjacent pixels on a display screen, of the DVG yields higher pixel density, resulting in sharper visuals, crucial for applications requiring fine details like advertising and command centers. This smaller pitch enhances image quality, reduces graininess and pixelation, and ensures clear viewing experiences, making the DVG display a versatile and ideal LED display for various indoor settings.
With its high-resolution LED panels, the DVG delivers stunning visual performance and clarity, making it ideal for various indoor applications. This display boasts exceptional brightness levels and color reproduction, ensuring vivid and captivating visuals in any lighting condition. With an up to 5000:1 high contrast ratio, and High Dynamic Range, The DVG delivers an unparalleled visual performance.

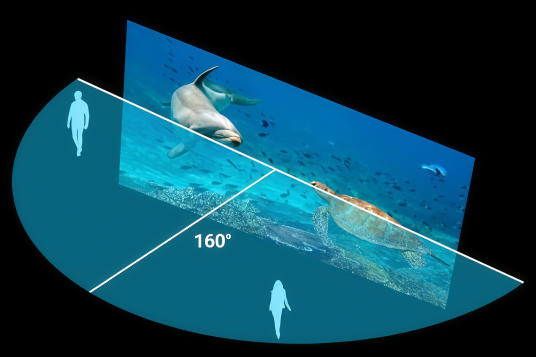

The DVG features an impressive 160° wide viewing angle, ensuring clear visibility and optimal viewing experiences from various positions. Whether positioned centrally or at an angle, users can enjoy consistent and vibrant visuals without distortion or loss of image quality. This wide viewing angle enhances versatility and accessibility, making the DVG ideal for a range of applications and environments.
