Active LED Solution
The DVC series is a high-performance display that utilizes Chip On Board (COB) technology for improved stability, brightness, and durability.
The DVC series is a high-performance display that utilizes Chip On Board (COB) technology for improved stability, brightness, and durability.

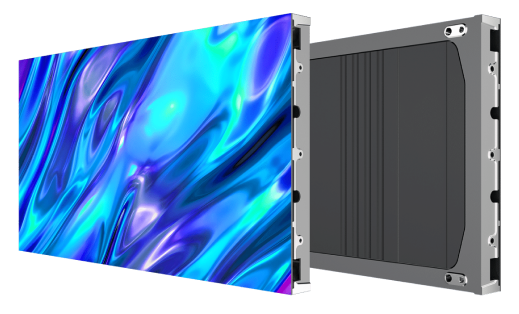

The DVC series is a high-performance display that utilizes Chip On Board (COB) technology for improved stability, brightness, and durability. With a pixel pitch as low as 0.93 mm, it delivers stunning visuals with ultra-high contrast, vivid colors, and wide viewing angles. Designed for long-term reliability, it features low thermal resistance, energy-saving capabilities, and easy front maintenance for a hassle-free experience.

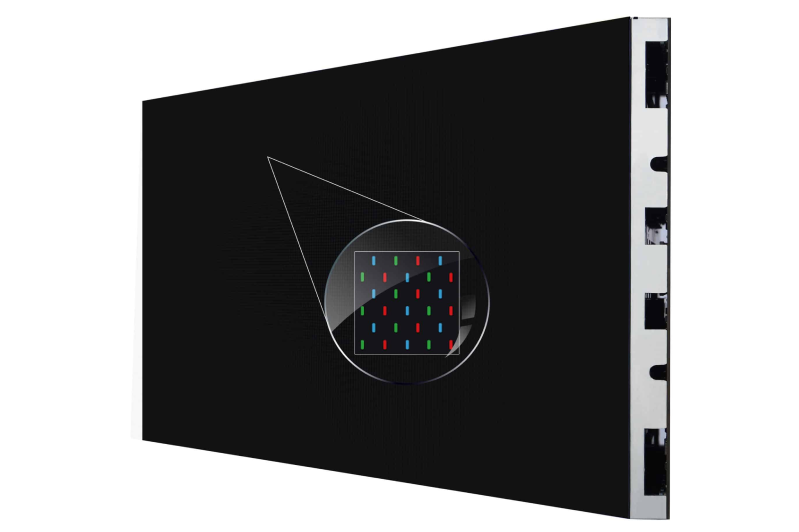

Chip On Board (COB) is a technology where tiny LED chips are directly mounted onto a circuit board instead of being individually packaged. This design allows for a more compact arrangement, improving brightness, durability, and heat dissipation. As a result, COB displays offer better image quality, longer lifespan, and fewer technical failures compared to traditional LED screens.
| Model NO | DVC - 0.9P | DVC - 1.2P | DVC - 1.5P | DVC - 1.8P |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.93 pixel pitch | 1.25 pixel pitch | 1.56 pixel pitch | 1.87 pixel pitch |
| Pixel Configuration | COB | COB | COB | COB |
| Module Size (mm) | 300*168.75mm | 300*168.75mm | 300*168.75mm | 300*168.75mm |
| Cabinet Size (mm) (W×H×D) | 600*337.5*40mm | 600*337.5*40mm | 600*337.5*40mm | 600*337.5*40mm |
| Cabinet Material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Brightness (nits) | 0-600(Adjustable) | 0-600(Adjustable) | 0-600(Adjustable) | 0-600(Adjustable) |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Max Power Consumption | ≤400 | ≤350 | ≤350 | ≤350 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Life Span | 100000hrs | 100000hrs | 100000hrs | 100000hrs |
| IP Rating | Front IP41/Rear IP20 | Front IP41/Rear IP20 | Front IP41/Rear IP20 | Front IP41/Rear IP20 |
The DVC features an ultra-wide 170° viewing angle, ensuring that visuals remain clear and vibrant from almost any perspective. Even at extreme angles, there is no noticeable color shift, preserving image accuracy and consistency. The display’s delicate texture and smooth visuals create a comfortable and immersive viewing experience, making it ideal for various applications.
Enhancing the contrast between light and shadow, the DVC delivers deeper blacks and more vivid highlights for a truly immersive viewing experience. Its advanced display technology brings out intricate picture details, ensuring every image appears sharp and lifelike. With a no-glare, low-reflection design, viewers can enjoy exceptional image quality in any lighting condition.
With up to 600 nits of brightness, the DVC delivers vivid visuals that remain clear even in well-lit environments. Its 3840 Hz refresh rate ensures ultra-smooth motion, eliminating flicker for a comfortable viewing experience. Paired with 50/60 Hz frame rates, the DVC guarantees consistently fluid playback that keeps every audience engaged.
